Product Images
Pre-terminated Cable
Model: Data Center Cabling

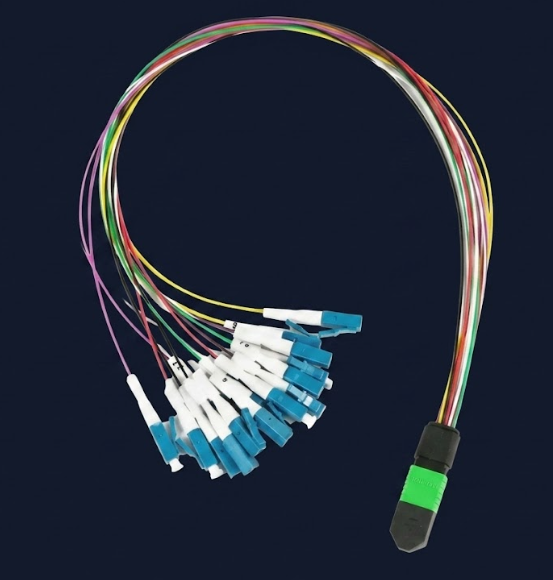

ORIENTELS indoor/outdoor pre-terminated breakout cables cover 12–144 fibers. They support MPO/SC/LC/FC/LSH/MU connectors, multiple breakout kits and 0.9–3.0mm cords, with breakout length up to 10m and 0.5cm tolerance. Non-armored cables fit general aerial/duct use; armored and ADSS variants withstand harsh outdoor conditions. Fully customizable for FTTH, data center, industrial and medical deployments.
Product Features
- 100% pre-terminated and tested in factory to ensure transfer performance
- Supports 40G and 100G network applications
- Jacket material: LSZH / OFNR / OFNP available
- Supports up to 12F / 24F / 48F / 72F / 96F / 144F
Applications
- Connected with trunk cables on one end
- equipment port on the other end Connected with transfer modules on one end
- equipment port on the other end

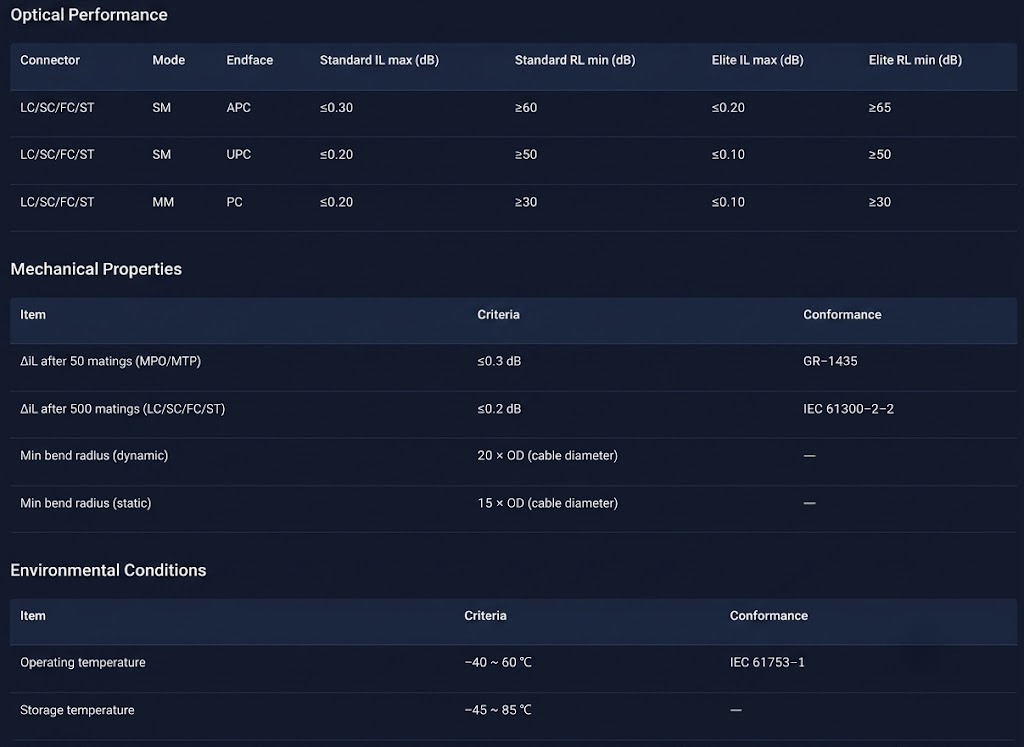

Parameter Diagram
