Product Images
MMC Cable Assemblies
Model: Data Center Cabling
ORIENTELS' MMC patch cords feature VSFF MMC connectors for single/multimode fibers up to 2.5mm. Equipped with proprietary TMT ferrules and MT/MT-16 alignment, their push-pull boots allow easy plug/unplug in densely packed setups. MMC cabling cuts space occupation for structured wiring, high-fiber data center interconnections and high-bandwidth scenarios.
Product Features
- VSFF MMC connector supports 3x cabling port density over the MPO format
- Top and bottom rails enable correct orientation to simplify installation and maintenance
- TMT Elite™ enables 0.35dB low IL and APC for superior return loss
- Tested to Telcordia GR-1435
- Available in 1×16 and 2×12 fiber count configurations
Applications
- Data center structured cabling
- High fiber-count data center interconnects
- High-bandwidth applications

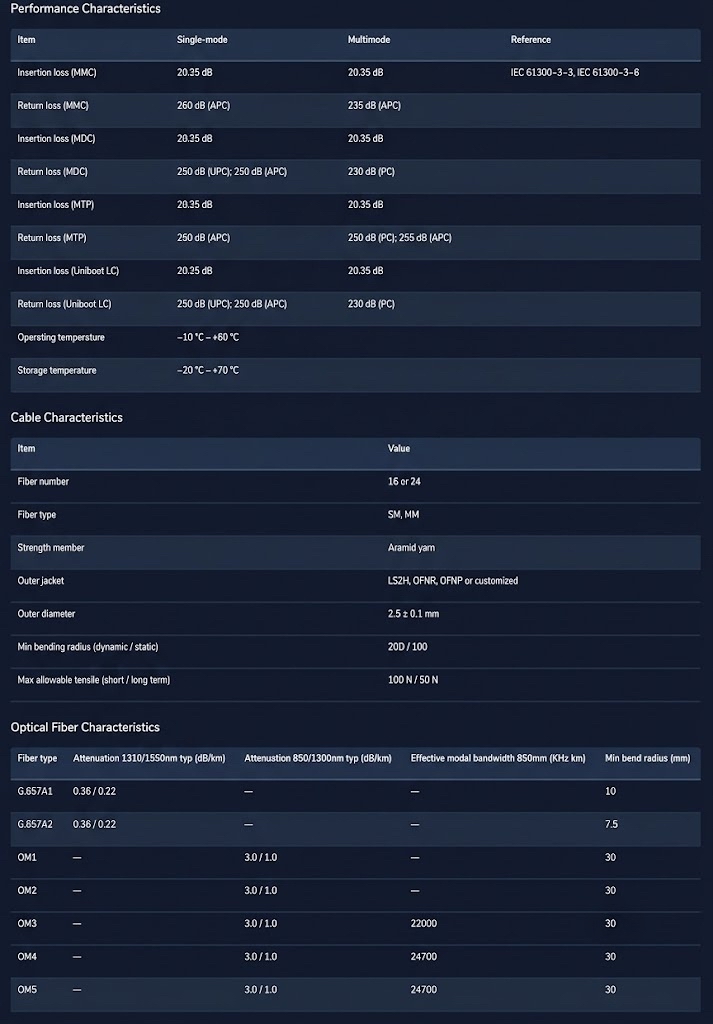

Parameter Diagram
